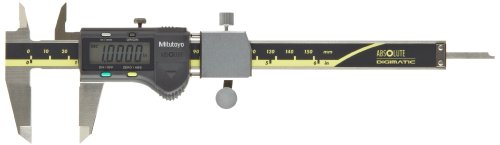

Mitutoyo 573-281-20 ABSOLUTE Snap Digital Caliper, LCD, Battery Powered, 0-4"/0-100mm Range, +/-0.001" Accuracy, SPC, 0.0005"/0.01mm Resolution
The Mitutoyo 573-281-10 ABSOLUTE Digimatic snap digital caliper has a spring-loaded mechanism to allow fast and efficient assessment of mass production parts. This caliper has accessible function control buttons, such as Origin-set, Zero-setting, Power On/Off, Inch/Metric, and Data Output, and uses both inch and metric measuring systems.
The 573-281-10 has the ABSOLUTE electrostatic capacitance linear encoder. It weighs 213 g and has a depth bar. Main scale length is 233 mm, lower jaw depth is 40 mm, upper jaw length is 21 mm, upper jaw depth is 16.5 mm, and beam width is 16 mm. Range is 0 - 4"/0 - 100 mm, resolution is 0.0005"/0.01 mm, and accuracy is rated at + or - 0.001". Measuring force is 7N to 14N. Also included are origin-setting, zero-setting, inch/metric conversion, data output, and power on/off function buttons. A Digital LCD Data Reading Hold function is available with the optional data hold unit (part 959143), sold separately. An alarm alerts the user to low voltage and counting value composition errors. A thumbwheel permits fast and easy measuring and a thumb screw locks the scale’s position. Response speed is unlimited. The caliper has Statistical Process Control (SPC) data output capability for manufacturing quality control. It outputs data using a serial data interface to a computer or other dedicated recording device using SPC cable with data switch (959149 or 959150, depending on cable length). The SR44 silver oxide cell battery (part 938882) lasts for approximately 3.5 years of normal use and is recommended to maintain constant voltage levels.
Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers all give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used also for measuring size differential between two objects. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.
Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
What’s in the Box?
- Mitutoyo 573-281-10 caliper
- One SR44 silver oxide cell battery
- Fitted, plastic case
- Range is 0 - 4"/0 - 100 mm, resolution is 0.0005"/0.01 mm, and accuracy is rated at + or - 0.001"
- Spring-loaded snap mechanism for fast and efficient measurement of mass production parts
- Hardened stainless steel construction for protection of caliper components
- Function control buttons on the face for ease of use: Origin-set, Zero-setting, Power On/Off, Inch/Metric, and Data Output
- Thumbwheel for fast and easy measuring
